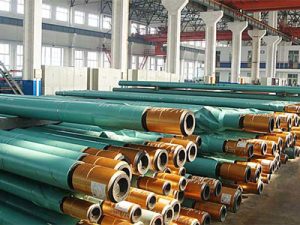

STAR DRILL SERVICES DMCC carries a full range of tool sizes from 3 1/8 inches OD through to 11 1/4 inches OD with various lobe configurations in different stages due to clients drilling conditions. This enables STAR DRILL SERVICES coordinators to specify the right motor for the project with regard to hole size, displacement objectives, available pump capabilities and fluid properties. This range of directional motors enables STAR DRILL SERVICES to specialize in hole sizes ranging from 4 1/8 inches through 26 inches.

Rig site adjustable housings ensure rig site flexibility and reduced on-site storage.

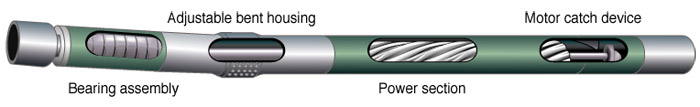

directional motors are equipped with a field-adjustable housing that allows for easy and reliable bend adjustment from zero (or straight) to three degrees in 12 increments. The tensile strength of this adjustable housing meets or exceeds the rest of the motor to ensure uncompromised tool integrity. STAR DRILL SERVICES’s adjustable housing features a 120 degree wear pad as an integral part of the adjusting ring. Regardless of the bend angle, the wear pad will always be opposite high side to ensure reliable directional performance.

Drive shaft and universal joints designed to withstand the rigors of variable torque applications.

STAR DRILL SERVICES directional motors employ the latest technology in drive shafts and universal joints. This key assembly converts eccentric rotation from end of the rotor to concentric rotation through the bearing assembly to the bit box mandrel. Pressure compensated sealed bearing universal joints on each end of the shaft contribute to the motors reliability and run longevity.

Power section quality and selection ensure the right torque and rotary speed combination for optimal performance.

STAR DRILL SERVICES directional motors are available with different power section options to handle a wide range of directional applications. Whether the job calls for high speed low torque, medium speed medium torque, low speed high torque, invert mud systems or drilling with air, you can rely on STAR DRILL SERVICES’s professional operations team to assemble the right power section for optimum directional performance. The rotors and stators are cleaned, callipered, measured, inspected and cataloged after every job to ensure that all components are well inside the manufacturer’s recommended specifications.

All PDM Stabilization and wear pads are part of the proprietary directional assembly design provided by STAR DRILL SERVICES.

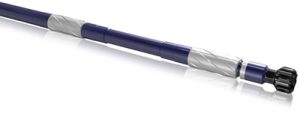

STAR DRILL SERVICES directional motors can be configured with a near bit stabilizer as part of the bent housing assembly to provide closer proximity to the drill bit. Stabilizers can be spiral or straight blade, and when run in conjunction with the integral wear pad at the bend, provides the full range of stabilization required for any directional plan.

Dump sub reliability ensures trips will be dry and quick/efficient.

This component, located at the top of the motor, is a normally-open valve which allows mud to by-pass the motor to fill the hole or drain the pipe when tripping. The valve will automatically close when pumping starts.

STAR DRILL SERVICES`s PDM Systems consist of three type of famous PDM:

DynoMAX PDM

Cougar PDM

LILIN PDM
